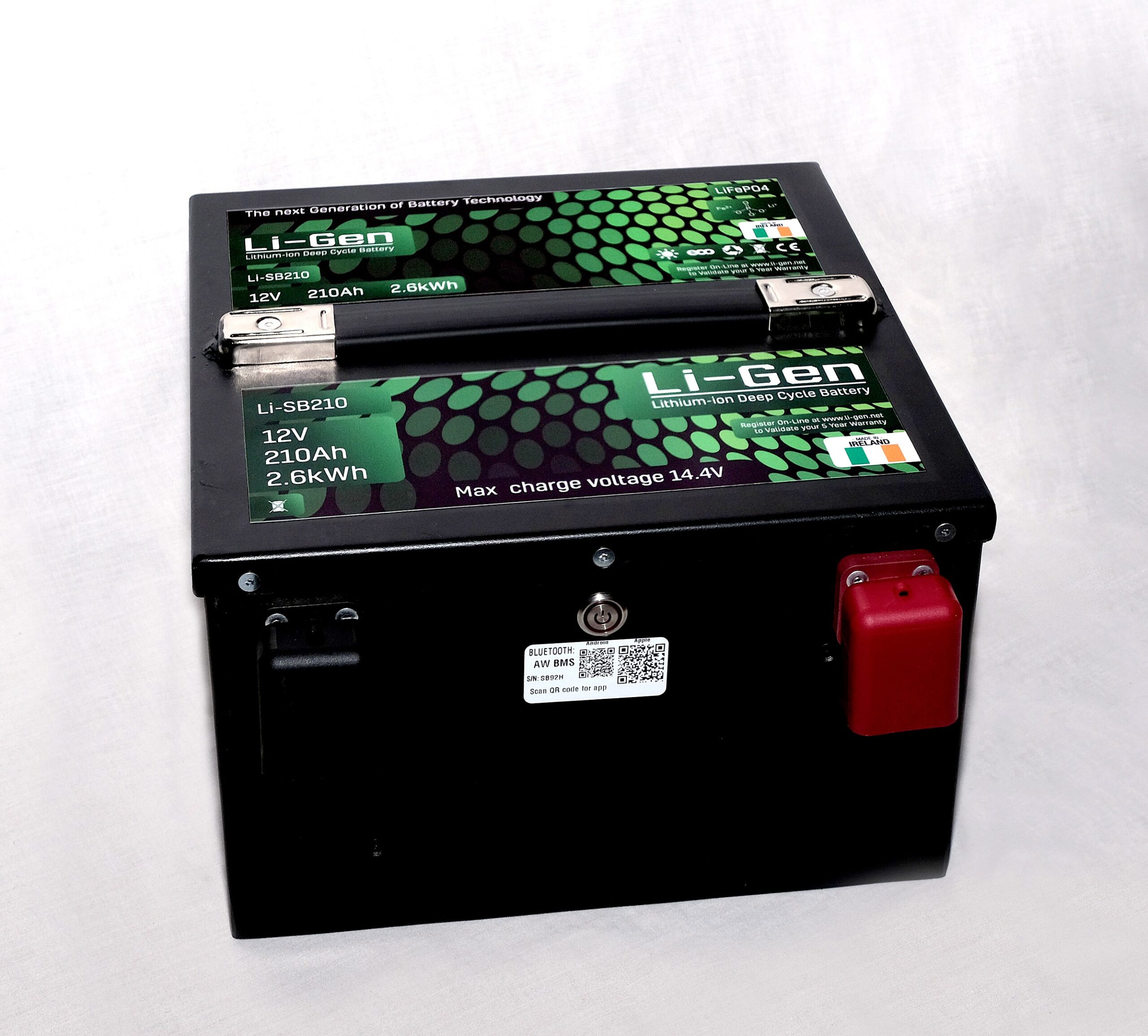

KS-SB210 12V 210AH lithium-ion battery Seat Base Compact Series with bluetooth high power BMS

£1,099.00

Available on back-order

Product Code: 1507-41383-331348 Category:

Description

The KS-SB210 is a 12V 210Ah high capacity deep cycle lithium leisure battery that has been specifically manufactured to easily fit under the front drivers, or passengers seat of a Sevel s.p.a X250 or X290 commercial vehicle. The van chassis favoured by the majority of coachbuilders and generically used since 2007 by Fiat’s Ducato, Peugeot’s Boxer and Citroen’s Jumper & Relay vans. The battery case is constructed from rugged powder coated steel and features floor fixing brackets (removable) for mounting security. Internally the battery features our renown high current, low temperature charge protected BMS with Bluetooth communication to our KS Energy Android/Apple app. The battery with its integral carry handle weighs in just under 24Kg and any number may be paralleled.

Built using Galvanised Steel



Specifications KS-SB210
Type: Lithium-Iron Phosphate (LiFePo4)
Battery voltage nominal: 12.8V, charged at rested: 13.2V
Nominal capacity: 210AH, 2.56KWh @ 25oC
Cells: 105ah prismatic 3.2V, arrangement: 4S*1P
Maximum continuous discharge current: 200A
Peak surge discharge current: 300A for 15 seconds
Size: L*W*H 330*270*190 (inch 13*10.6*7.6). This includes space to add pole adaptors. Box is only 290 plus terminals.
Removable fixing bracket: length 18mm each (inch 0.7)
Weight: 23.8Kg (52.5lbs)
Max charge voltage: 15.00V, Max continuous charge current: 200A
Recommended charge current <100A
Recommended Charge voltage 14.4V, Charge type: CC/CV
Recommended discharge current: <200A
Recommended low voltage disconnect 11V
Float voltage (when applicable) 13.3V – 13.6V
Operating temperature: -20°C to +50°C, Storage temperature: -20°C to +30°C
Parallel configuration: unlimited, Series: 4 max
Battery Management/Protection: Internal BMS actively balanced
Low temperature Charge Protection: charge current disconnect <0°C
Battery Over Charge Protection: disconnect 14.8V, resume 14.4V
Cell over charge protection: cell bank disconnect >3.75V, resume <3.55V
Battery Over Discharge Protection: discharge disconnects <10.6V, release 11V Short Circuit electronic trip: >450A, release <400A
Over temperature shut down: >60°C, release <55°C
Efficiency: 99%, internal resistance ±3%: 25mΩ @ 50% SOC 25°C
Self-discharge: 3%/month, max. dry storage (@60% capacity): 12 months Terminal connections: M8 bolts for M8 sized lugs recommended torque 8Nm
Case material: Powder coated steel, ingress rating: IP52
Parallel configuration: unlimited, Series: maximum 4
Life Span >5000 cycles @80%-30% DOD @0.5C, >2500 cycles DOD 95% @1C
Wireless protocol: BLE-Bluetooth® 4.0 with auto-hibernate
Compliance: UKCA (CE) Certification for the entire battery (product)
Shipping designation Class 9
Designed and built in Ireland.
